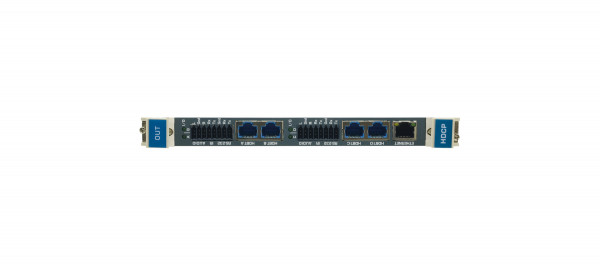

DTAxr-OUT4-F32

4-Kanal-4K 60 4:2:0-HDMI-HDBaseT-Ausgangskarte mit wählbarem Embedded- oder De-Embedded-Analog-Audio (vergr. Reichweite)

• Max. Datenrate 6,75 GBit/s (2,25 GBit/s je Grafikkanal).
• Max. Resolution 4K@60Hz (4:2:0).
• Analog Audio Embedding/De–embedding On the same jack.
• HDBaseT-Technologie HDTV-kompatibel, HDCP-konform.
• System-Reichweite 130 m im Normalmodus; 180 m im Ultra-Modus (1080p @60 Hz @24 bpp).
• Ethernet Extension Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS–232 Extension Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• 3D-Durchleitung.

• Produktabmessung: 22.00cm x 18.80cm x 2.00cm (8.66 x 7.40 x 0.79 ) W, D, H
• Versandabmessung: 25.00cm x 22.50cm x 5.50cm (9.84 x 8.86 x 2.17 ) W, D, H
• Produktgewicht: 0.2kg (0.5lbs) approx.
• Versandgewicht: 0.4kg (0.9lbs) approx.

Gebrauchsanleitung:
