• 3132

Lieferzeit ca. 5 Tage

2x1:4 4K (4:2:0) UHD HDMI und HDBaseT Verteilverstärker mit Ethernet, RS-232, IR und Audio... mehr
Produktinformationen "VM-214DT"

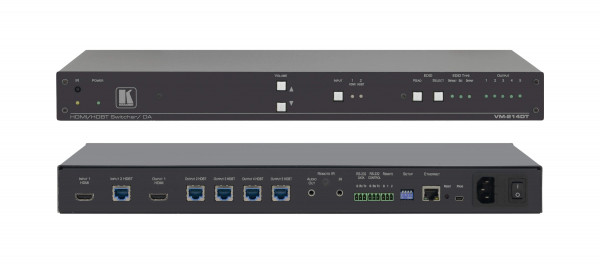

2x1:4 4K (4:2:0) UHD HDMI und HDBaseT Verteilverstärker mit Ethernet, RS-232, IR und Audio

  • High Performance Extender Distributor High–quality professional 1:4 distribution of native extended–reach HDBaseT signals, for deploying mid–way between an AV source and multiple remote displays and gaining extra extended–reach extension. It is coupled with both sides, input and output, extension of a maximum 4K@60Hz (4:2:0) 24bpp video resolution signal to maximum 100m (330ft) extended–reach over CAT copper cable, and even further reach for lower HD video resolution. The extender distributor is standard and capable of being connected to any market–available HDBaseT compliant extending product.
  • Cables For optimum range and performance, use recommended Kramer cables.
  • HDMI Signal Extension HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the display.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ An intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Looping HDMI Output Enables monitoring and cascading to additional DAs.
  • Ethernet Extension Ethernet interface data flows in both directions, enabling extension of up to 100Mbps Ethernet connectivity for LAN communication and control of devices.
  • Bidirectional RS–232 Extension Serial interface data flows in both directions, enabling data transmission and control of devices.
  • Bidirectional Infrared Extension IR interface data flows in both directions, enabling remote control of peripheral devices located at either end of the extended line.
  • Cost–effective Maintenance Status LED indicators for HDMI and HDBT ports to facilitate easy local maintenance and troubleshooting. Remote IP device management via built–in web pages or RS–232 control connection. Local and remote firmware upgrade via mini–USB, control RS–232 or Ethernet connection and the K–Upload tool to ensure long field–proven deployment.
  • Easy Installation Twisted–pair cables for HDBaseT signals wiring. Rack mountable enclosure for mounting in a 1U rack space with included rack ears.
  • Produktabmessung: 43.64cm x 18.30cm x 4.36cm (17.18 x 7.20 x 1.72 ) W, D, H
  • Versandabmessung: 55.00cm x 27.60cm x 10.70cm (21.65 x 10.87 x 4.21 ) W, D, H
  • Produktgewicht: 1.6kg (3.4lbs) approx.
  • Versandgewicht: 2.7kg (6.0lbs) approx.

Gebrauchsanleitung VM-214DT
