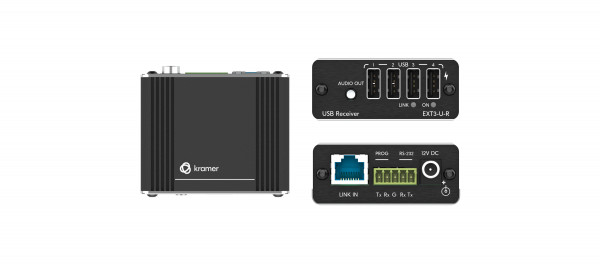

EXT3-U-R

USB Receiver

• Comprehensive USB Extender Plug & play USB extender kit for providing extended−reach CAT signals and 2−way power over twisted pair copper infrastructures. A local USB host is auto−connected to remote−connected USB devices employing either interrupt, bulk or isochronous USB 2.0 standard data transfer communication.
• Flexible USB Connectivity Wide Variety of USB peripheral and dual−role devices can be extended including cameras, touch screens, smart boards, hard drives, game controllers, audio devices, printers, scanners, or HID (Human Interface Devices) devices such as a mouse or keyboard.
• USB Peripherals Charging Fast USB charging of peripheral devices when the receiver is powered by a power supply, and standard USB charging when the receiver is powered by the transmitter via CAT.
• Bidirectional RS-232 Extension Serial interface data flows in both directions, allowing data transmission and device control.
• Audio Extension The transmitted analog audio line signal, from the remote audio source, is connected to the locally connected audio playing device.
• Cost–effective Maintenance Status LED indicators facilitate easy local maintenance and troubleshooting.
• Easy Installation Single twisted−pair cable for carrying signal and power wiring. Compact PicoTOOLS® fan–less enclosure for device−back mounting, or side−by−side mounting of 4 units in a 1U rack space with the recommended rack adapter.

• Produktabmessung: 6.22cm x 5.18cm x 2.44cm (2.45 x 2.04 x 0.96 ) W, D, H
• Versandabmessung: 49.00cm x 18.60cm x 58.80cm (19.29 x 7.32 x 23.15 ) W, D, H
• Produktgewicht: 0.1kg (0.2lbs) approx.
• Versandgewicht: 0.0kg (0.0lbs) approx.
