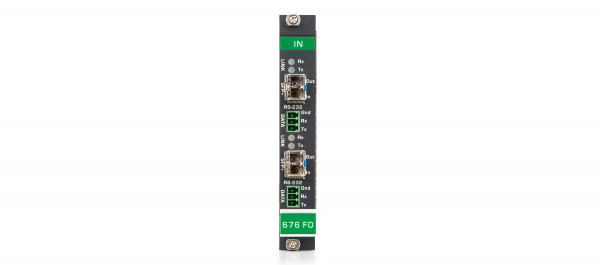

F676-IN2-F34

4K60 4:4:4 HDMI over Ultra−Reach MM/SM Fiber Optic Input Card

• High Performance Standard Fiber Extender HDMI fiber transmitter for providing ultra–reach signals over either multi–mode or single–mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units (multi–mode SFP+ included). Near–zero latency video chroma sub–sampling conversion technology, is employed to auto–adapt above 10G HDMI signals to 10G optical link signal data–rate.
  Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi–performance OSP SFP+ pluggable optical units.
• HDMI Signal Extension HDCP 2.2 compliant and supports up to 18G (6G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS–HD.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Bidirectional RS–232 Extension Serial interface data flows in both directions, to enable data transmission and control of devices.
• Cost–Effective Maintenance Fiber link connection LEDs facilitate easy local troubleshooting.

• Produktabmessung: 25.50cm x 13.00cm x 2.00cm (10.04 x 5.12 x 0.79 ) W, D, H
• Versandabmessung: 29.50cm x 16.60cm x 6.40cm (11.61 x 6.54 x 2.52 ) W, D, H
• Produktgewicht: 0.2kg (0.5lbs) approx.
• Versandgewicht: 0.4kg (0.9lbs) approx.

Gebrauchsanleitung:
