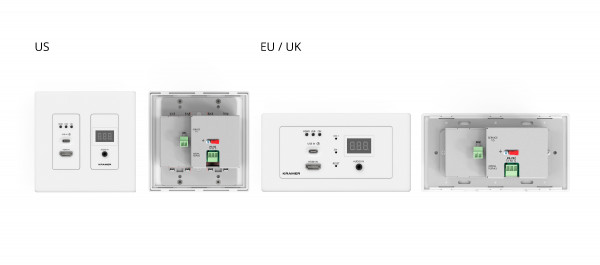

WP-SW2-EN7

Hochleistungs AVoIP Encoder für 4K60 4:2:0 Video mit HDMI und USB-C Eingang über 1G Ethernet, Unterputz-Decora-Format

• Video Streaming Transmitter Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
• Streaming Support Unicast and multicast.
• Multiple Inputs One HDMI input and one USB−C input, which support multiple switching policy including Last connected, Priority and Manually.
• Analog Audio Embedding Embed the unbalanced analog audio into the streaming and HDMI output signal.
• Convenient and Comprehensive Control Control the unit using intuitive web interface, protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
• Control Gateway Through P3K or special TCP connection, user can control/communicate with RS232, CEC to the connected devices.
• PoE Support Option to power with PoE connection from a PoE switch.

• Produktabmessung: UK: 15.10cm x 4.56cm x 8.60cm (5.94 x 1.80 x 3.39 ) W, D, H
• Versandabmessung: 23.80cm x 13.70cm x 7.50cm (9.37 x 5.39 x 2.95 ) W, D, H
• Produktgewicht: 0.4kg (0.9lbs) approx.
• Versandgewicht: 0.7kg (1.4lbs) approx.
