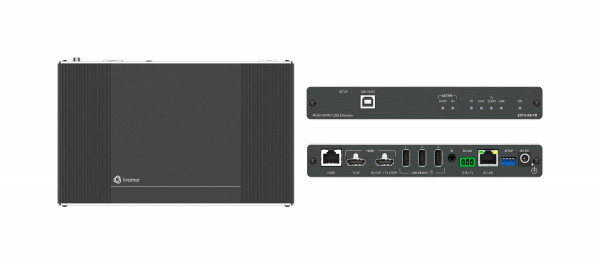

EXT3-XR-TR

HDBaseT 3.0 Transmitter/Receiver für 4K60 4:4:4 HDMI, USB, Ethernet, RS–232, und IR, mit eXtra Reichweite

• High Performance Standard Extender Professional HDBaseT extender for providing extended–reach signals over twisted–pair copper infrastructures. EXT3−XR−TR is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
• HDMI Signal Extension HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
• HDMI Mirroring Transmitter−side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain.
• Flexible USB 2.0 Extension An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices.
• Multi–channel Audio Transmission Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
• Ethernet Extension Ethernet interface data flows in both directions, allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS–232 Extension Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• Cost–effective Maintenance Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting.
• Easy and Elegant Installation MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.

• Produktabmessung: 19.00cm x 11.60cm x 2.70cm (7.48 x 4.57 x 1.06 ) W, D, H
• Versandabmessung: 34.50cm x 16.50cm x 5.20cm (13.58 x 6.50 x 2.05 ) W, D, H
• Produktgewicht: 0.6kg (1.2lbs) approx.
• Versandgewicht: 1.2kg (2.5lbs) approx.
