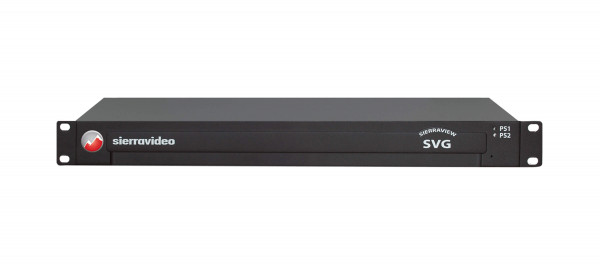

SierraView™ SVG Modular MultiViewer

4−20 Input Modular MultiViewer

• Multi-format input combinations with four inputs per module.
• HDCP support
• Audio level monitoring
• Auto-sensing CVBS/SD, HD-SDI (up to 3G) and HDMI input modules.
• Flexible output option either single or dual display: 4:3, 16:9 and free−form.
• Tally support
• Web browser set up and control
• Output resolutions up to 1920x1080p in either HDMI or HD-SDI.
• Selectable analog and digital clocks, on-air timer and countdown timer.
• Dynamic UMDs & Tally information from routers and switchers.
• Supports format display of input signals with AFD information.
• Supports audio monitoring and full-screen video output.
• Alarms for frozen or black video, video loss, and audio silence or excessive level.
• Built-in web server via RJ45 for configuration and remote control.
• TSL & GPS Serial Timing.
• Dual Power Supplies Included.

• Produktabmessung: 19 x 18.50 x 1U (43.6cm x 47.00cm x 4.40cm) W, D, H
• Versandabmessung: 56.00cm x 58.00cm x 17.00cm (22.05 x 22.83 x 6.69 ) W, D, H
• Produktgewicht: 4.3kg (9.4lbs) approx.
• Versandgewicht: 6.4kg (14.2lbs) approx.
