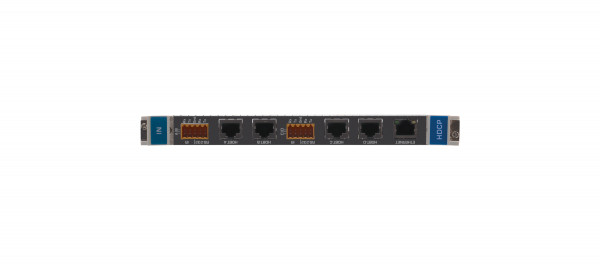

HDBT-IN4-F32

4-Kanal Eingangskarte für HDMI über HDBaseT mit Extended Reach

• Max. Datenrate 6,75 GBit/s (2,25 GBit/s je Grafikkanal).
• HDBaseT-Technologie HDTV kompatibel, HDCP konform.
• System-Reichweite 130 m im Normalmodus; 180 m im Ultramodus (1080p @60 Hz, @24 bpp).
• Ethernet Extension Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS–232 Extension Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• 3D-Durchleitung.

• Produktabmessung: 22.00cm x 18.00cm x 2.00cm (8.66 x 7.09 x 0.79 ) W, D, H
• Versandabmessung: 0.00cm x 0.00cm x 0.00cm (0.00 x 0.00 x 0.00 ) W, D, H
• Produktgewicht: 0.2kg (0.5lbs) approx.
• Versandgewicht: 0.0kg (0.0lbs) approx.

Gebrauchsanleitung:
