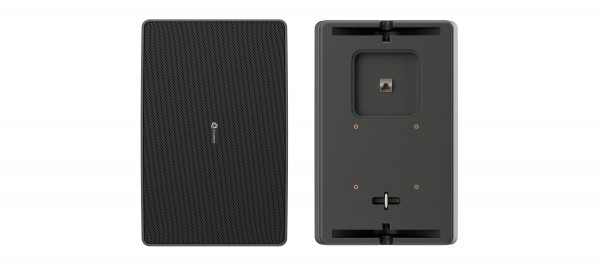

WM-8D

8” two–way wall mounted PoE powered Dante speaker

• Exceptional sound performance
• Complies with UL1480A for indoor installations (made from V-0 flame retardant materials)
• Supports PoE++/PoE+/PoE (auto-negotiate)
• Built-in mixer, DSP, and amplifier for two-channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
• Features a built-in “Find Me” tone, making it easy to identify and locate individual speakers during installation or maintenance.
• Power handling: 10W continuous / 30W peak
• Sound Pressure Level (SPL): Sensitivity (1W@1m, free field): 90dB SPL
  Maximum SPL: Continuous: 100dB SPL / Peak: 105dB SPL
• Regulatory compliance: IEC62368(CB) / CE LVD, UL62368−1
  FCC/IC, BIS, RCM
  RoHS, REACH, WEEE
• Industrial design: EasyMount bracket for flexible wall installation in vertical, horizontal, or corner orientations, and features standard 75mm VESA mount threads for expanded mounting options, available in black & white colors, removable logo
• Eco-friendly mono-material packaging
• The WM-8D wall-mounted Speaker is a high-end solution for indoor applications delivering high-performance high-quality sound in professional Dante networked audio installations.
• Included in the box: 1 speaker (single unit), 2 speakers are packed in a single master box
  1 EasyMount mounting brackets (1 per speaker) + 2 bracket screws
  L−shaped Allen key (M6)
  Quick Start Guide

• Produktabmessung: 43.64cm x 18.30cm x 4.36cm (17.18 x 7.20 x 1.72 ) W, D, H
• Versandabmessung: 55.00cm x 27.60cm x 10.70cm (21.65 x 10.87 x 4.21 ) W, D, H
• Produktgewicht: 1.5kg (3.3lbs) approx.
• Versandgewicht: 2.3kg (5.1lbs) approx.
