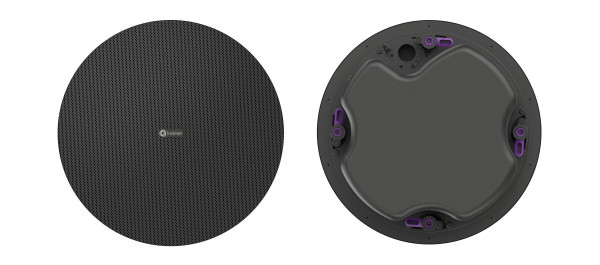

CL-6P

6.5”, In−ceiling two−way closed back co−axial passive speaker

• Premium sound with high SPL
• Plenum rated UL2043 & UL1480A
• Low-impedance (8Ω) / high-impedance (70V/100V)
• Power ratings: 30 W continuous pink noise / 45 W continuous program
• Sensitivity (1W@1m, free field): 88dB SPL
• Maximum SPL (@1m): Continuous: 103dB SPL / Peak: 105dB SPL
• TAA compliant option
• Industrial design: black & white bezel-less magnetic grills included in the box, Low profile - light weight, front-access wiring
• Eco-friendly mono-material packaging
• Included in the Box 1 speaker (single unit), 2 speakers are packed in a single master box
  Installation kit including and C−ring and bolts (mounting rails are not included and should be purchased separately)
  2 magnetic grills (1 white and 1 black per speaker)
  4–pin pluggable Euroblock connector, 28–12AWG
  Cutout template
  Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
  Quick Start Guide

• Produktabmessung: 21.46cm x 16.30cm x 4.36cm (8.45 x 6.42 x 1.72 ) W, D, H
• Versandabmessung: 40.50cm x 29.70cm x 9.00cm (15.94 x 11.69 x 3.54 ) W, D, H
• Produktgewicht: 0.9kg (2.0lbs) approx.
• Versandgewicht: 1.5kg (3.3lbs) approx.

Gebrauchsanleitung:
