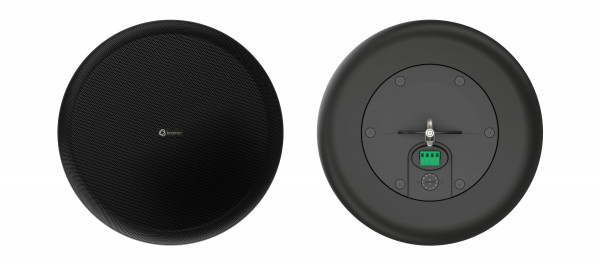

PN-8P

8

• Premium sound with high SPL
• Low-impedance (8Ω) / high-impedance (70V/100V)
• Power ratings: 60W continuous / 90W peak
• Sensitivity (1W@1m, free field): 90dB SPL
• Maximum SPL (@1m): Continuous: 108dB SPL / Peak: 110dB SPL
• UL1480A certified for indoor installations
• Industrial design: Available in black & white colors, removable logo
• Eco-friendly mono-material packaging
• Included in the Box 1 speaker (single unit), 2 speakers are packed in a single master box
  1 suspension cable kit
  4–pin pluggable Euroblock connector, 28–12AWG
  Quick Start Guide

• Produktabmessung: 12.00cm x 7.15cm x 2.44cm (4.72 x 2.81 x 0.96 ) W, D, H
• Versandabmessung: 15.70cm x 12.00cm x 8.70cm (6.18 x 4.72 x 3.43 ) W, D, H
• Produktgewicht: 0.2kg (0.3lbs) approx.
• Versandgewicht: 0.6kg (1.4lbs) approx.

Gebrauchsanleitung:
