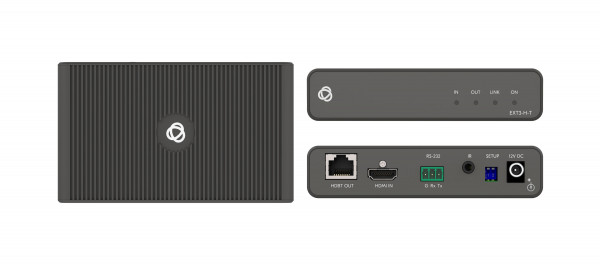

EXT3-H-T

4K60 4:4:4 HDR HDMI Transmitter with RS–232 & IR over Long–Reach HDBaseT

• High Performance Standard Extender Professional HDBaseT extender for providing signals over twisted–pair copper infrastructures. Video signals are transmitted uncompressed with near–zero latency.
• Future-proof, Standard Extender EXT3−H−T is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends uncompressed HDBaseT signals
• HDMI Signal Extension HDR HDCP 2.3 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0b. EDID and CEC signals are passed through from the source to the display.
• Multi–channel Audio Extension Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
• Bidirectional RS–232 Extension Serial interface data flows in both directions, allowing data transmission and device control at baud rates up to 115200 bps with no need for pre configuration.
• Bidirectional Infrared Extension IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• Cost–Effective Maintenance Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection ensures lasting, field–proven deployment.
• Easy Installation Compact DigiTOOLS® fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.

• Produktabmessung: 12.00cm x 7.15cm x 2.44cm (4.72 x 2.81 x 0.96 ) W, D, H
• Versandabmessung: 15.70cm x 12.00cm x 8.70cm (6.18 x 4.72 x 3.43 ) W, D, H
• Produktgewicht: 0.2kg (0.5lbs) approx.
• Versandgewicht: 0.7kg (1.5lbs) approx.

Gebrauchsanleitung:
