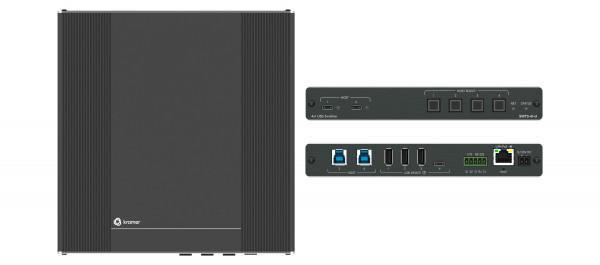

SWT3-41-U

4x1 USB Switcher

• Collaborative Online-meeting Switching Controllable switching of online−session USB host participants and space−deployed visual (such as camera) and audible (such as microphones or headsets) USB peripherals, allows collaborative online meeting and smooth content sharing operation among online meetings participants.
• BYOD Ease and Convenience: Connect any USB−C device as an online meeting participant, while providing the connected device with multiple concurrent capabilities of USB 3.1 and Ethernet connection, USB−driven content sharing, and (if PD−2.0−capable) up to 60 watts of power, all via a single USB−C cable connection only.
• USB 3.2 Switching: USB 3.2 signals switching, enables high data−rate connection between active USB host and space USB devices, such as 4K camera, high−quality audio devices, and HID (Human Interface Devices) mouse or keyboard devices.
• Auto Switcher Ease of Use: Automatically connects the plugged host to the space connected USB peripherals, according to user−configured preferences, such as last−connected host.
• Simple and Flexible Control Remote IP−controller connection, browser operation webpage, local panel buttons, and remotely connected contact−closure buttons triggering configurable operation functions, for easy and fully flexible USB host ports selection, and switcher control.
• Built-in Intelligent Control Gateway Remote IP−driven intelligent control of connected USB and sensor devices via RS−232 or I/O. Eliminating the need for an external control gateway, this feature reduces installation complexity and costs, to enable easy integration with control systems, such as Kramer Control.
• Secured Operation: Standard IT–grade 802.1x authentication for secured IT LAN connectivity operation.
• Comprehensive and Cost–effective Management Local panel indication LEDs to facilitate easy local maintenance and troubleshooting. Remote IP−driven device firmware upgrade and management, via user−friendly embedded web pages and optional whole site management system, ensure lasting and field proven deployment.
• Easy and Elegant Installation: PoE powering via LAN port connection, and MegaTOOLS™ fan–less enclosure for desktop, under table or dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter, for easy switcher deployment.

• Produktabmessung: 19.00cm x 19.50cm x 2.70cm (7.48 x 7.68 x 1.06 ) W, D, H
• Versandabmessung: 35.10cm x 21.20cm x 7.20cm (13.82 x 8.35 x 2.83 ) W, D, H
• Produktgewicht: 0.9kg (2.0lbs) approx.
• Versandgewicht: 1.5kg (3.2lbs) approx.

Gebrauchsanleitung:
